gauge_driver_breakout
2 layer board of 1.41 x 1.01 inches (35.7 x 25.6 mm)
Uploaded:
March 14th 2018
Shared:
March 14th 2018
Total Price:
$7.05

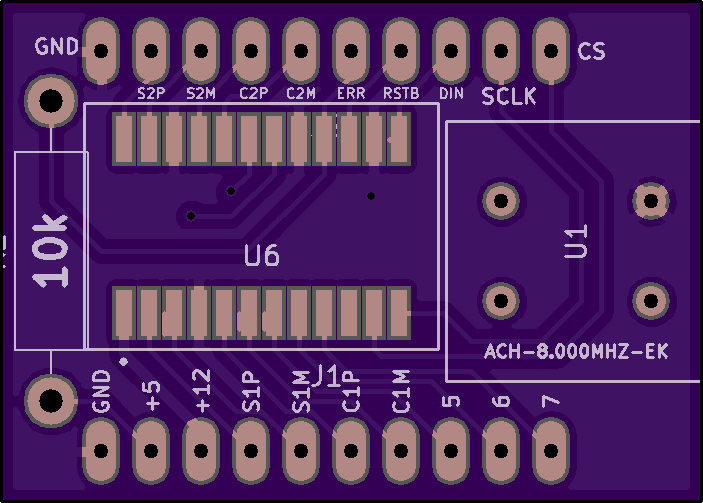

MLX10407 breakout board - essentially implements the example schematic in the datasheet. The specced crystal is the ACH-8.000MHZ-EK from ABRACON, but any 8MHz crystal should work.
MLX10407 breakout board - essentially implements the example schematic in the datasheet. The specced crystal is the ACH-8.000MHZ-EK from ABRACON, but any 8MHz crystal should work.
Boiler Control_v2-2.brd
2 layer board of 3.43 x 1.78 inches (87.2 x 45.3 mm)
Uploaded:
January 19th 2017
Shared:
January 19th 2017
Total Price:
$30.60
ATMEGA328P-based project to cycle oil burner circulators on and off according to temperature input. GitHub and Google Drive
ATMEGA328P-based project to cycle oil burner circulators on and off according to temperature input. GitHub and Google Drive
